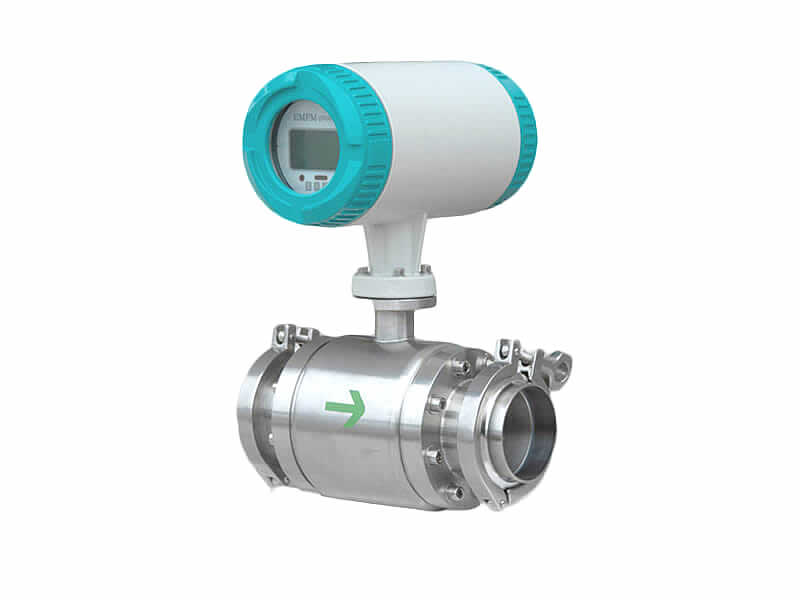

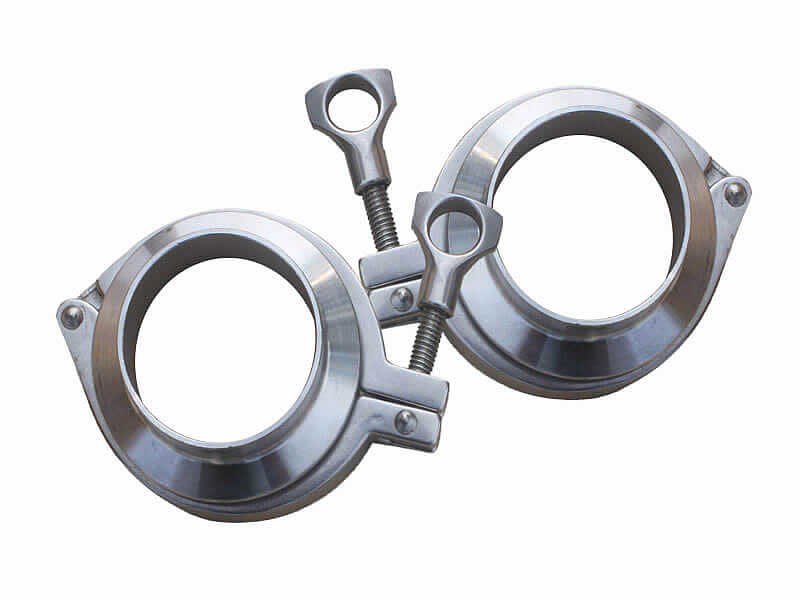

Tri-clamp Electromagnetic Flow Meter

Size:DN10-DN200
Output Mode:4~20 mA,pulse
Measuring Range:0.2-15 m/s max
Working Pressure:≤ 1.6 MPa
Accuracy:0.5% or 0.2% of the reading value +0.3 m/s

Share With:

Overview
Technical Data

Principle
Sanitary flow meter works based on Faraday's law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s.

Application
According customers requirements,we can provide various electromagnetic flowmeters widely used following industries,

  • Chemical
  • Medicine
  • Beverage
  • Iron and steel
  • Water supply
  • Electricpower
  • Water treatment

Features

  • No moving partes,no pressure loss
  • Accuracy:±0.2% of the measured value + 0.3m/s
  • High accuracy for low flor rate and can measure duplex flow
  • Double frequency excitation,stable zero point
  • Built-in ground electrode,no need grounding ring

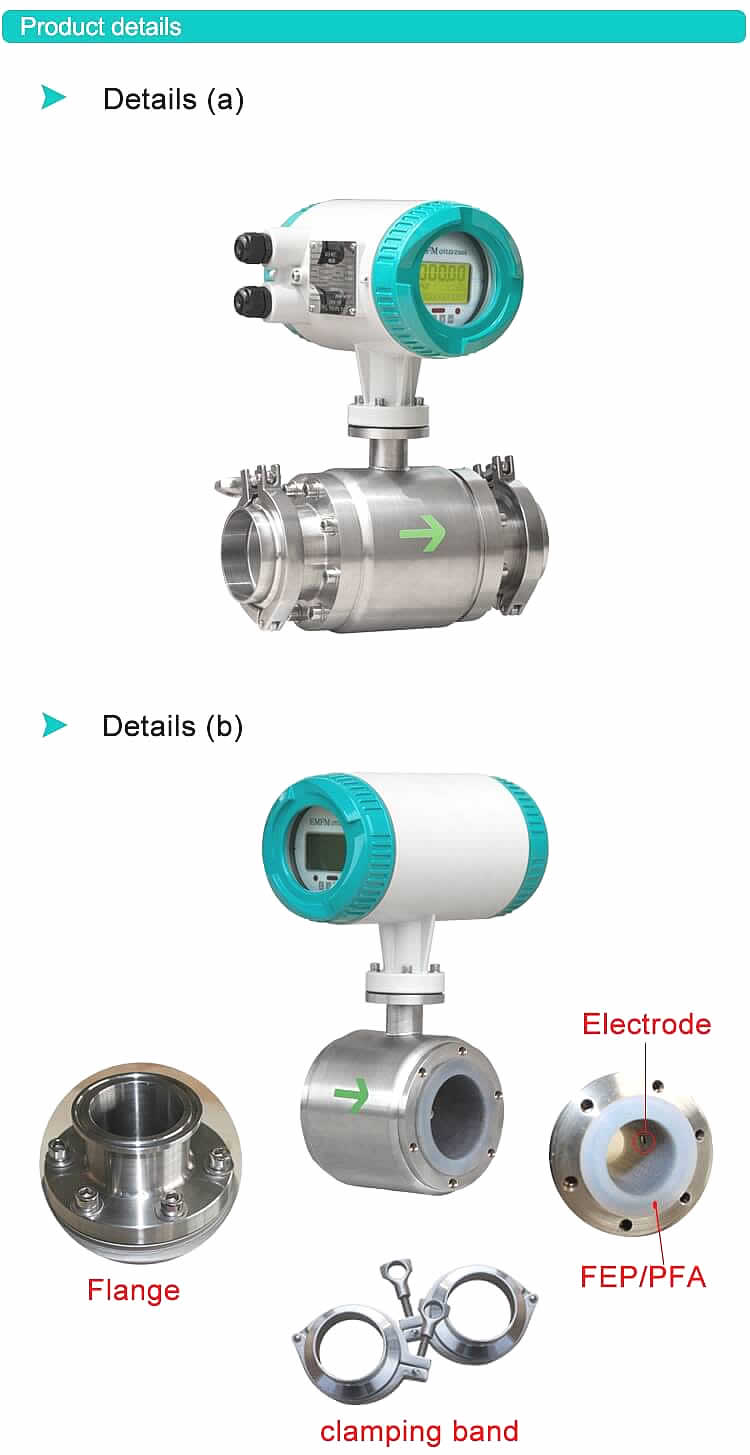

sanitary flow meters

Installation Notice

Installed at the lowest point and vertical upward direction Install exhaust valve at the downstreat of flow meter

Don’t install at the highest point and vertical downward diection when drop is more than 5m

Installed at the lowest point when used in open drain pipe Need 10D of upstreat and 5D of downstreat

Dont’ install it at the entrance of pump, install it at the Installed at the rising direction
exit of pump
