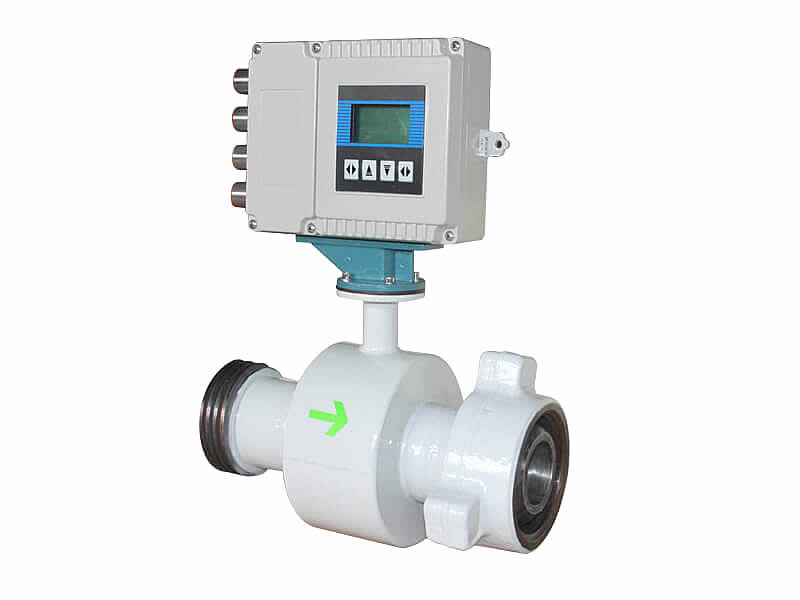

Union Connection Electromagnetic Flow Meter

  • Size:DN10~DN300
  • Output Mode:4~20 mA,pulse
  • Electrode:SS316L,HC,HB,Tan,Ti,Pt
  • Working Pressure:6.3、10、16、25、32MPa
  • Connection :Union
Share With:
  • Overview
  • Technical Data
Principle
Sanitary flow meter works based on Faraday's law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s.
Union electromagnetic flow meter is sonsist of proprietary technological sensor and transmitter,it's mainly used to measure  slurry,cement paste and high pressure water infusion  in geology, oil exploration.

Application
According customers requirements,we can provide various electromagnetic flowmeters widely used following industries,

      • Chemical
       Medicine
       Beverage
       Iron and steel
      • Water supply
      • Electricpower
      • Water treatment

Features
      • No moving partes,no pressure loss
       Accuracy:±0.2% of the measured value + 0.3m/s
      • High accuracy for low flor rate and can measure duplex flow
      • Double frequency excitation,stable zero point
       Built-in ground electrode,no need grounding ring





          Installation Notice

Installed at the lowest point and vertical upward direction              Install exhaust valve at the downstreat of flow meter

Don’t install at the highest point and vertical downward diection          when drop is more than 5m




Installed at the lowest point when used in open drain pipe        Need 10D of upstreat and 5D of downstreat






Dont’ install it at the entrance of pump, install it at the           Installed at the rising direction
exit of pump


Sel              Battery-powered Magnetic Flow Meter




Battery-powered Magnetic Flow Meter Selection Table



Performance of Electrodes
