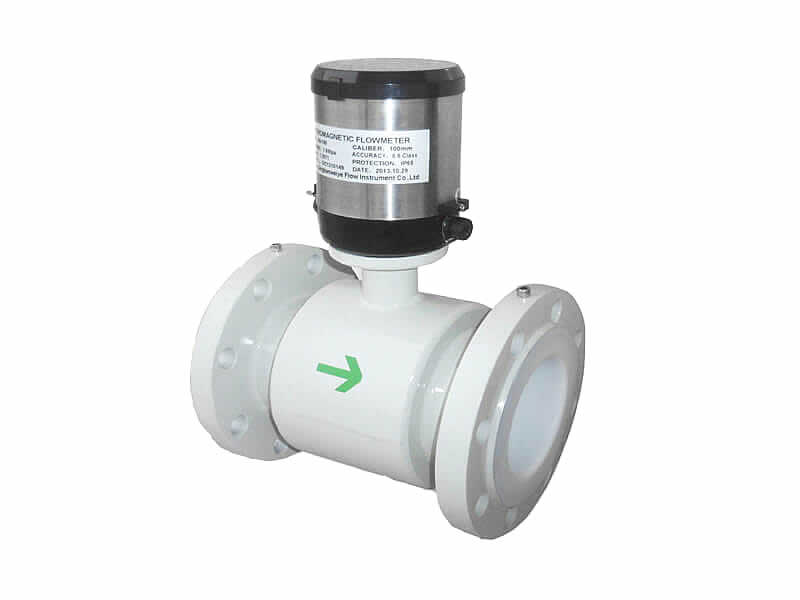

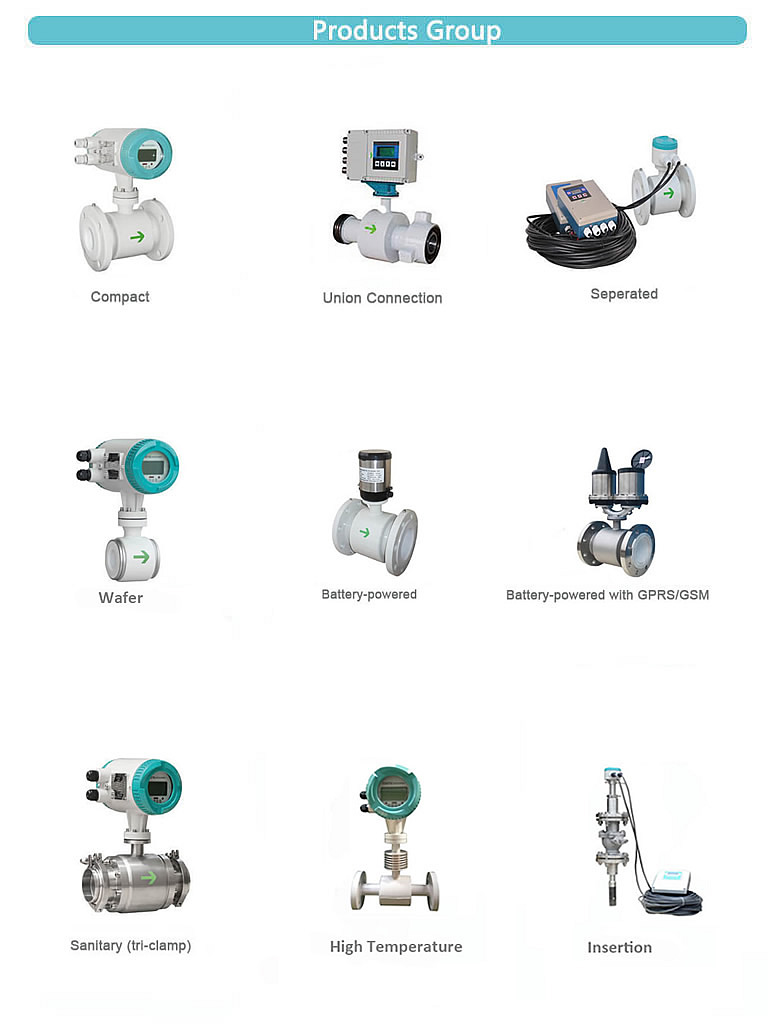

Battery Powered Electromagnetic Flow Meter
- Size:DN3-DN3000
- Electrode:SS316,HC,HB,Ti,Tan,Pt
- Liner Material:PTFE,PFA,FEP,neoprene,hard rubber
- Accuracy:0.5% of reading value, 0.3% and 0.2% optional
- Connection :Flange,Tri-clamp, Wafer, Union,
Introduction
Battery-powered Electromagnetic flow meter is hallmarked by its high performance and reliability based on successful, field-proven technology. It is being widely used in industries such as petroleum, chemical engineering, iron and steel, food, electricpower, paper making, water treatment, petrochemical, medicine etc.
Features
♦ Medium temperature can be -20℃~200℃.
♦ Integrated vertification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.
♦ Dual frequency excitation and stable zero point.
♦ Precision coil winding technology,makes magnetic field more uniform.
♦ High protection grade,IP65.
♦ No moving parts,no pressure loss.
♦ High accuracy: ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s.
Installation Notice
Installed at the lowest point and vertical upward direction Install exhaust valve at the downstreat of flow meter

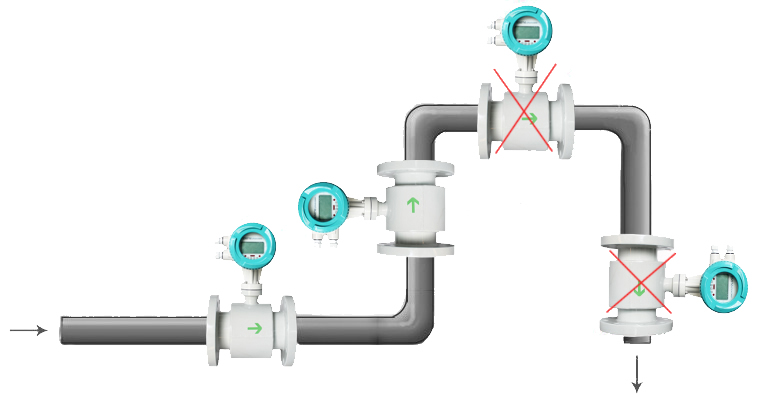

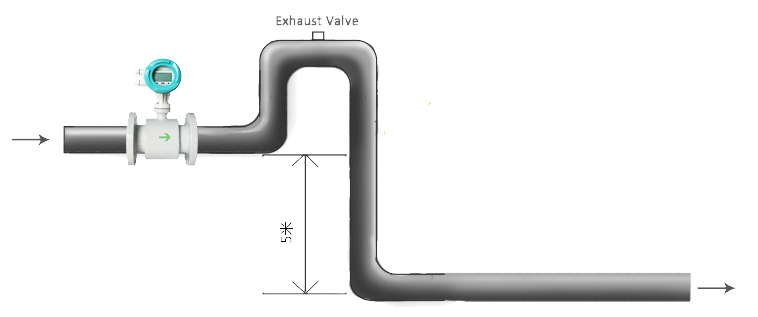

Don’t install at the highest point and vertical downward diection when drop is more than 5m

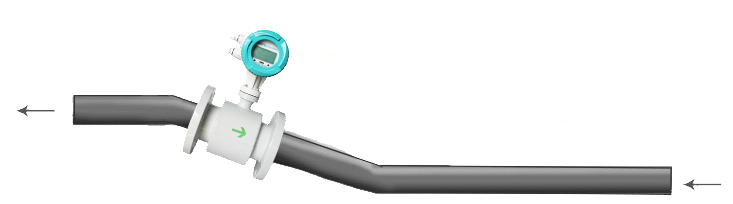

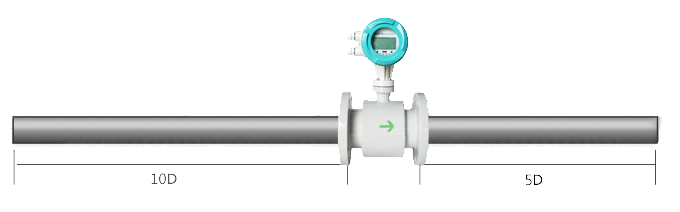

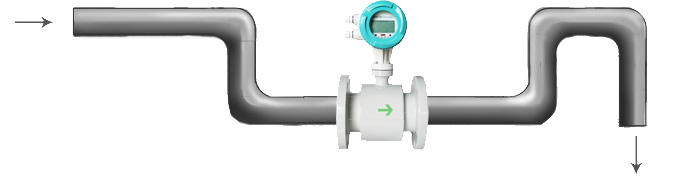

Installed at the lowest point when used in open drain pipe Need 10D of upstreat and 5D of downstreat

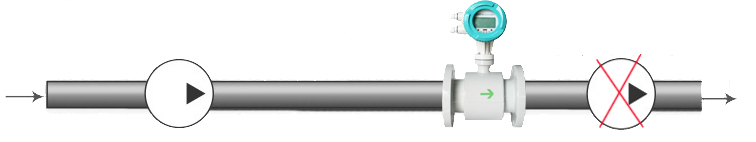

exit of pump
|
Size |
DN10-DN800mm (3/8”~32”) |
|
Accuracy |
±0.5% of reading,velocity >0.3 m/s |
|
Conductivity |
Normal liquid >5 μS/cm,DI water >20 μS/cm |
|
Velocity |
0.1-15 m/s |
|
Protection Grade |
IP68 |
|
Power Supply |
Battery-powered |
|
Power Consumption |
<20W |
|
Signal Output |
4~20 mA,pulse |
|
Communication |
RS485/Modbus,GPRS |
|
Language |
English,Chinese (Other languages can be provided on request) |
|
Ambient Temperature |
-25 ~ +60℃ /-77 ~ 140℉ Sensor -10~ +50℃ /-50~122℉ Convertor |
|
Liquid Temperature |
Integrated: 70℃/ 158℉ max Seperated: 200℃/ 392℉max |
|
Relative Humidity |
5%~90% |
|
Measuring Tube |
Stainless Steel 304 |
|
Electrode Type |
Fixed, Scraper |
|
Flange |
Carbon Steel (standard) |
|
Straight Pipe |
Inlet Path ≥ 10D, Outlet Path ≥ 5D |
|
Excitation Frequency |
4.63Hz/s (mode 1), 3.90Hz/s |
|
Electrode |
SS316L (standard), Hastelloy C, Hastelloy B,Titanium Tantalum, |
|

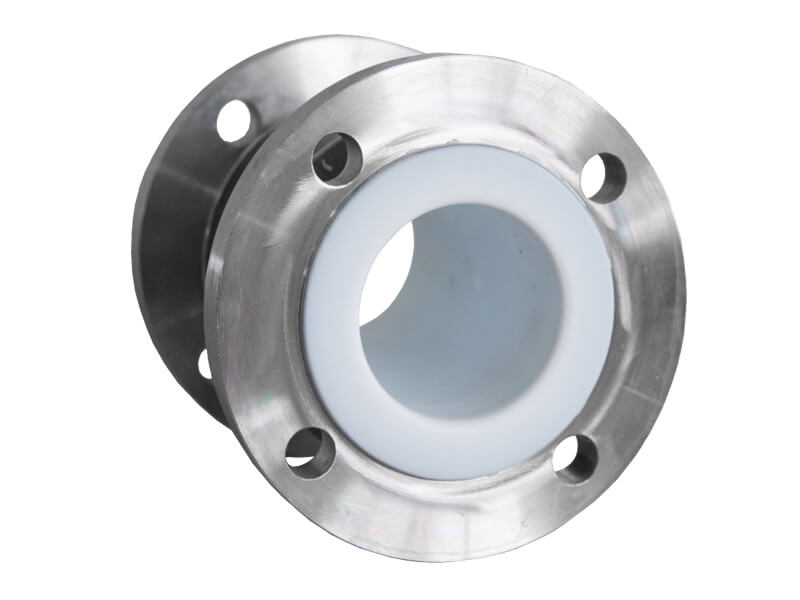

Liner Material |
PTFE DN15-DN1600 -20℃ ~ +120 ℃ （-68℉~ 248℉） |
|
Pressure Rating |
4.0 MPa (DN3-DN150) |
|
Flange Standard |
ANSI B16.5 150#, 300#, 600# |
|
Certificates |
CE 6022120716, ISO9001:2008, CQC1500155689521 |
Performance of Electrodes
|
Electrode Material |
Applications |
|
Stainless Steel 316L |
Applicable in water,sewage and corrosive mediums.Widely used in industries of petrol,chemistry,carbamide,etc |
|
Hastelloy B (HB) |
Having strong resistance to hydrochloric acid of any consistance which is below bioling piont. |
|
Hastelloy C (HC) |
Be resistant to oxidable acid such as nitric acid,mixed acid,as well as oxidable salt such as Fe+++,Cu++aStnd sea water |
|
Titanium |
Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable acid (including fuming nitric acid),organic acid,alkali etc. |
|
Tantalum |
Having strong resistance to corrosive mediums that is similar with glass |
|
Platinum-iridium |
Almost be applicable in all chemical mediums except for ammonium salt. |
|
Stainless Steel Covered |
Applicable in mediums of no corrosive and low abrasion. |
