magnetic flowmeter technology introduction

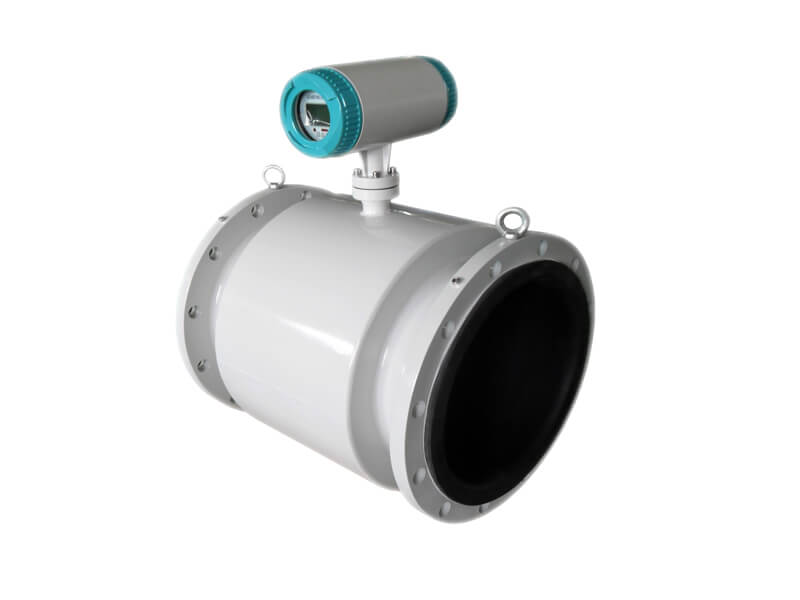

magnetic flowmeter Introduction

Electromagnetic flow meter is hallmarked by its high performance and reliability based on successful, field-proven technology. It is being widely used in industries such as petroleum, chemical engineering, iron and steel, food, electricpower, paper making, water treatment, petrochemical, medicine etc.

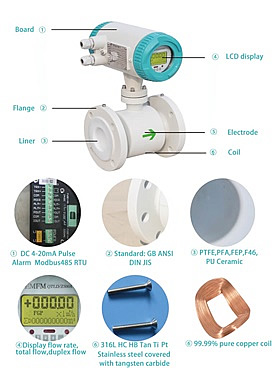

Features

Application  ♦  Medium temperature can be -20℃~200℃.
  ♦  Integrated vertification,diagnostic function and empty pipe detection.
  ♦  Measure forward and reverse direction flows.
  ♦  Built-in reference electrodes,no need to connect ground ring.
  ♦  Dual frequency excitation and stable zero point.
  ♦  Precision coil winding technology,makes magnetic field more uniform.
  ♦  High protection grade,IP65.
  ♦  No moving parts,no pressure loss.
  ♦  High accuracy: ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s.

   ♦ Chemical

   ♦ Medicine

   ♦ Beverage

   ♦ Iron and steel

   ♦ Water supply

   ♦ Electricpower

   ♦ Water treatment

          Installation Notice

Installed at the lowest point and vertical upward direction              Install exhaust valve at the downstreat of flow meter

Don’t install at the highest point and vertical downward diection          when drop is more than 5m




Installed at the lowest point when used in open drain pipe        Need 10D of upstreat and 5D of downstreat






Dont’ install it at the entrance of pump, install it at the           Installed at the rising direction
exit of pump
