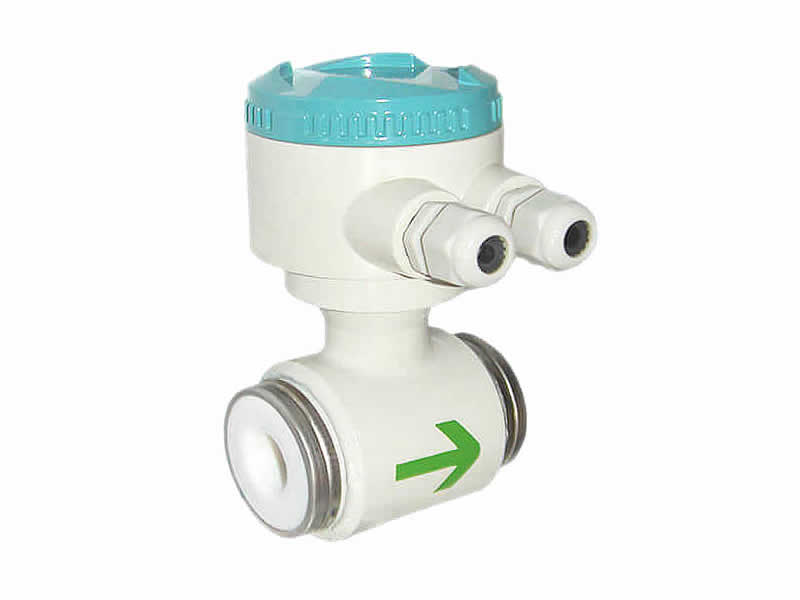

electromagnetic flow meter advantages and disadvantages
- Liner Material:PTFE,PFA,FEP,F46,neoprene,rubber
- Size:DN3-3000
- Medium Temperature:-10℃~160℃
- Measuring Tube material:SS 304
- Accuracy:0.5% or 0.2% of the reading value +0.3 m/s
Principle
Mag meter works based on Faraday's law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s.
Application
According customers requirements,we can provide various electromagnetic flowmeters widely used following industries,
• Chemical
• Medicine
• Beverage
• Iron and steel
• Water supply
• Electricpower
• Water treatment
electromagnetic flow meter Advantages:
• No moving partes,no pressure loss
• Accuracy:±0.2% of the measured value + 0.3m/s
• High accuracy for low flor rate and can measure duplex flow
• Double frequency excitation,stable zero point
• Built-in ground electrode,no need grounding ring
Installation Notice
Installed at the lowest point and vertical upward direction Install exhaust valve at the downstreat of flow meter
Don’t install at the highest point and vertical downward diection when drop is more than 5m
Installed at the lowest point when used in open drain pipe Need 10D of upstreat and 5D of downstreat
Dont’ install it at the entrance of pump, install it at the Installed at the rising direction
exit of pump
Sel Battery-powered Magnetic Flow Meter
Battery-powered Magnetic Flow Meter Selection Table
Performance of Electrodes
