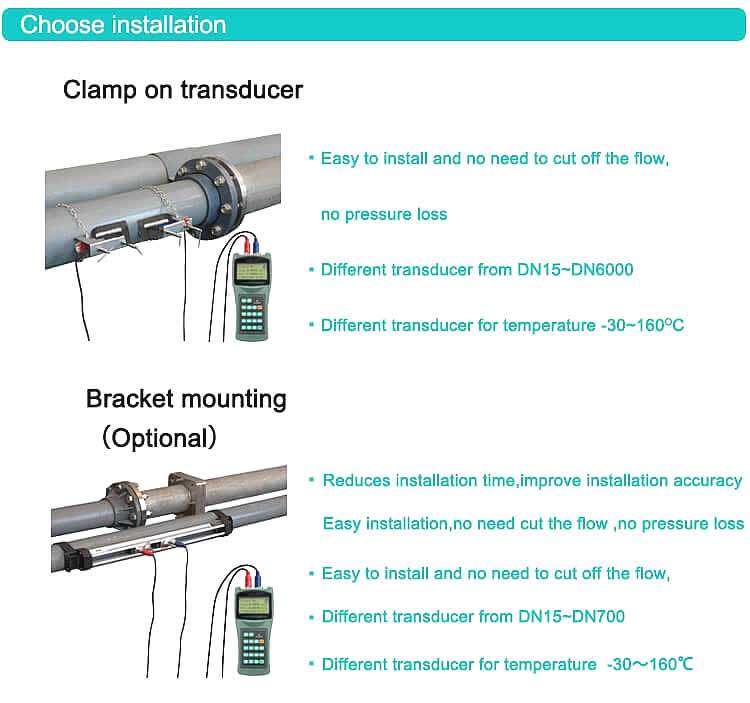

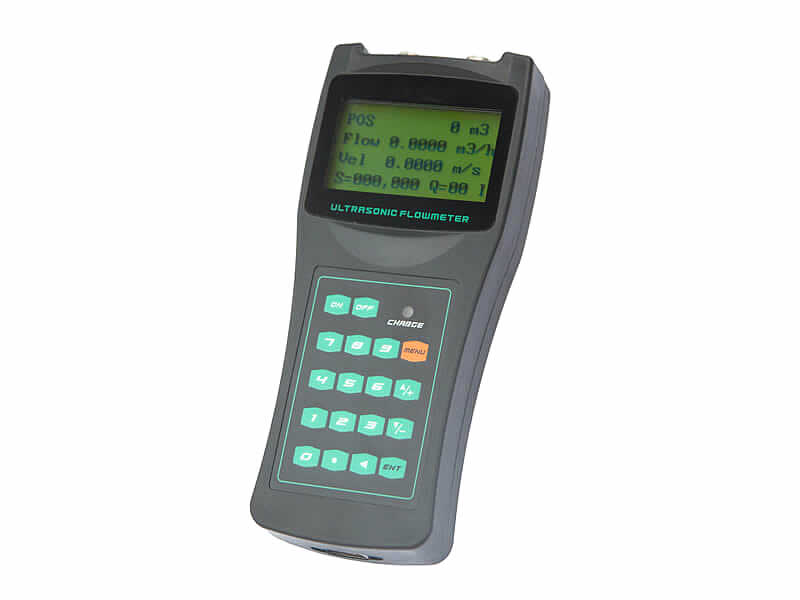

Portable ultrasonic Flow Meters installation requirements
- Accuracy:Better than 1%
- Repeatability::Better than 0.2%
- Caliber:DN15-DN6000
- Transducer Temperature:-30℃-160℃
- Velocity:±32 m/s
V-method installation is the moswidely used mode for daily measurement with pipe inner diameters ranging from 15 millimeter to 200 millimeter. It is also called reflective mode or method.
Z-method is commonly used when the pipe diameter is between 300 millimeters and 500 millimeters.
W-method is usually used on plastic pipes with a diameter from 15 millimeters to 100 millimeters
.png)
